SIMSCAN Series

SIMSCAN - E

The SIMSCAN-E is an intelligent, wireless, and palm-sized 3D scanner that combines a lightweight design with exceptional
performance. Featuring advanced edge computing and wireless data transfer, it sets a new standard for flexible, wireless and
free 3D scanning.
With robust algorithm and high-definition industrial cameras, SIMSCAN-E can capture 3D data with remarkable precision and
efficiency, measuring up to 6.3 million measurements/s. It boasts three scanning modes, ultra-fast, hyperfine, and deep hole.
This versatility allows it to handle a wide range of tasks effortlessly, from scanning in tight spaces to measuring complex
structures.

Compact and Wireless

– Weighted only 600 g and sized 203 × 80 × 44 mm.
– Wireless 3D scanning.
– Sophisticated edge computing and wireless data transfer.
– Detachable charging base.

Exceptional Detail Capture

– Image enhancement and sub-pixel feature extraction
algorithms.
– Measurement accuracy up to 0.020 mm.
– For industrial-grade high-precision 3D scanning and measurement.

Diverse Operating Modes

– Ultra-fast scanning: 63 blue laser lines for efficient scanning.
– Hyperfine scanning: 17 parallel blue laser lines for swift detail
capturing.
– Deep hole scanning: 1 blue laser line for measuring deep
holes.

Fast, Smooth, and Efficient

– Measurement rate of 6.3 million measurements/s.
– 81 blue laser lines.
– 180-FPS frame rate.
– Ensures efficient and smooth scanning experiences

Excellent for Narrow Spaces

– Short-distance camera design, with a steep view angle.
– For hidden areas such as gaps, slots, deep holes, and channels.
– Improves data integrity.

Driven by Powerful and Efficient Software

– SIMSCAN-E operates with brand-new software platform
DefinSight, equipped with cutting-edge algorithms and
innovative layout, to simplify and speed up 3D scanning.

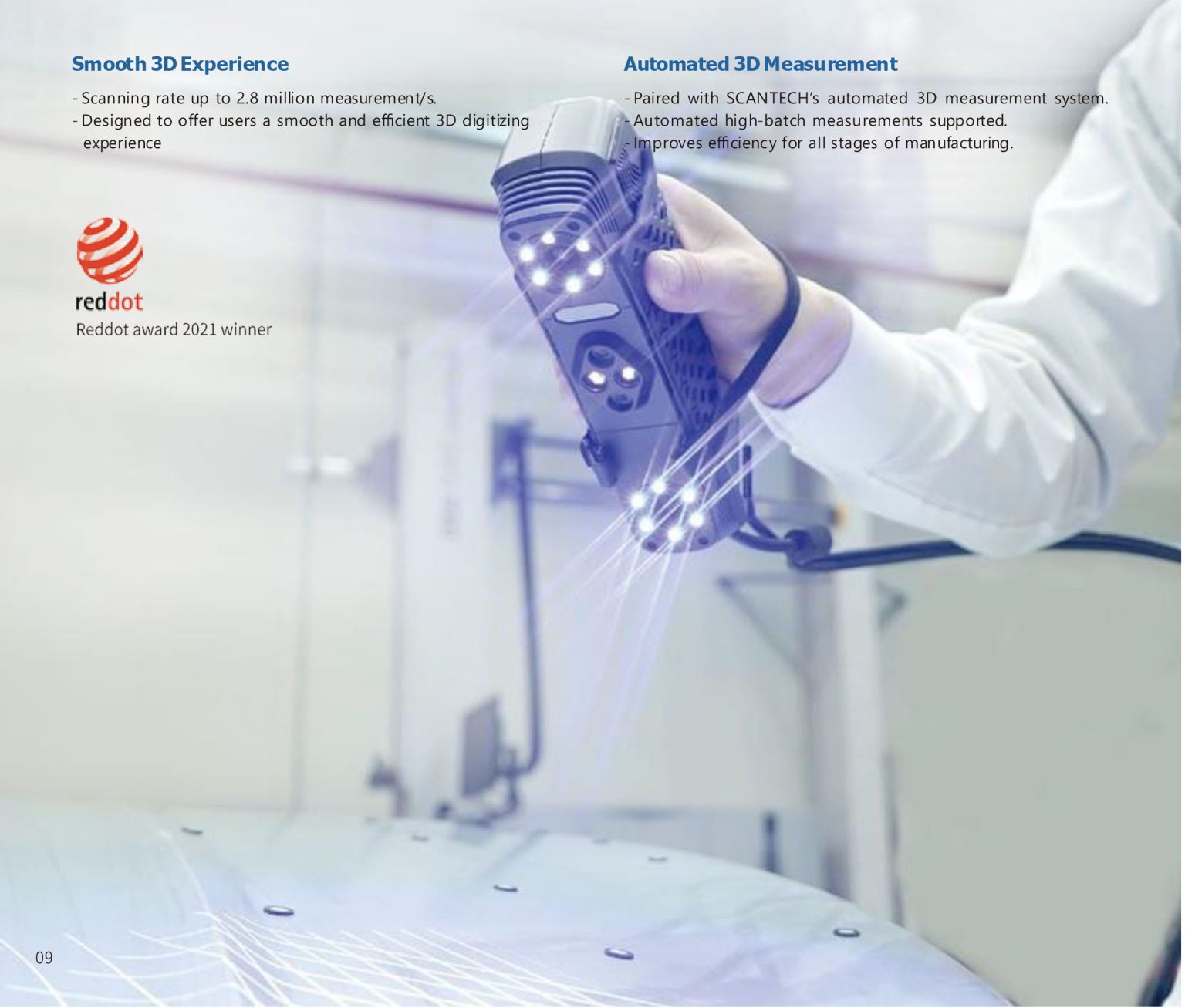

SIMSCAN

SIMSCAN, the only palm-sized Smart 3D scanner in the market so far, is specially designed for 3D scanning narrow and
hard-to-reach areas. Featuring a full-metal housing, it is incredibly sturdy and reliable. SIMSCAN has become a disruptive
innovation among professional 3D scanners due to its compact size, simplicity, and robust performance.

SIMSCAN performs high-quality 3D scanning regardless of any restrictions from the working environment. It is ideal for 3D
scanning both narrow spaces and large-scale parts. Users can accurately capture every detail of objects and construct 3D
models in a very short amount of time with the help of this metrology-grade 3D measurement instrument.

Single-handed Control

– Full-metal housing.
– A weight of only 570 g and a size of 203 × 80 × 44 mm.
– Brings unparalleled simpleness for scanning anything with
one hand.

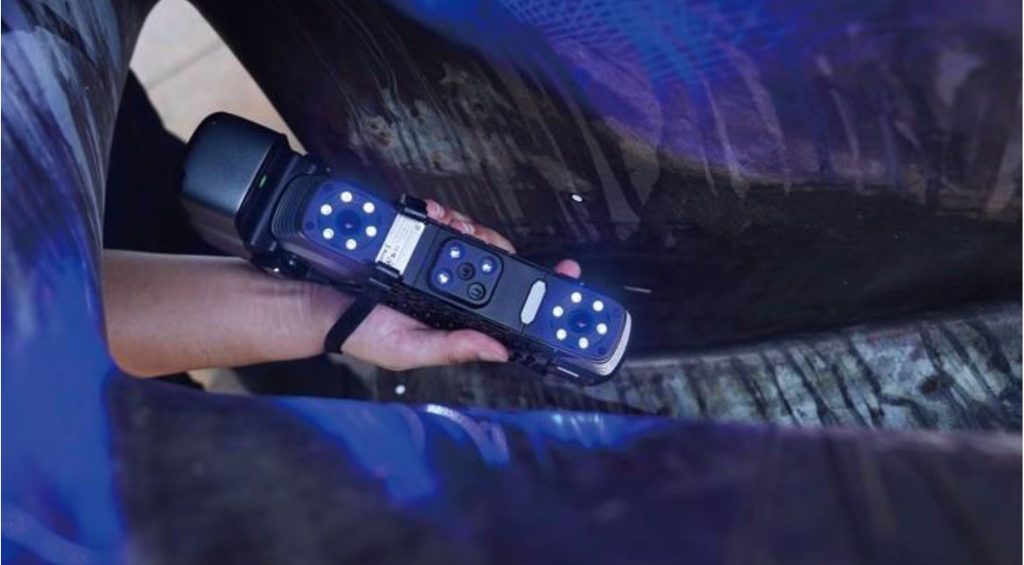

Narrow-space Measuring Booster

– A short camera distance around 130 mm.
– Capable of capturing accurate data in hard-to-reach areas.

Remarkable Portability

Compact size and excellent portability.
– Conduct 3D measurements anywhere and anytime

Detail, Everywhere

– Built-in HD cameras and three scanning modes.
– High-precision scanning with an accuracy up to 0.020 mm.
