KSCAN Series

KSCAN - X

Featuring wireless operation, ultra-wide scanning area, extended depth of field, and fast scanning, the KSCAN-X offers smooth
and high-precision 3D measurements for ultra-large and large to medium-sized parts across industries such as aerospace,
heavy industry, and rail transportation

Diverse Applications

Aerospace

Airplane Skin
Fuselage

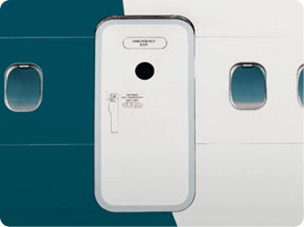

Airplane Door
Engine Blade

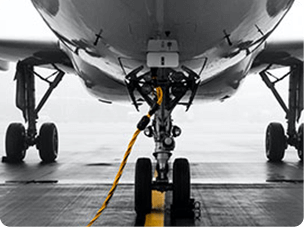

Landing Gear Panels
Engine Piping

Automotive

Stamping Part

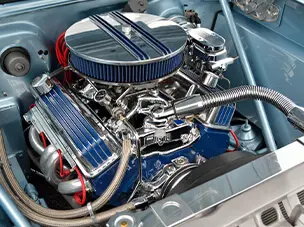

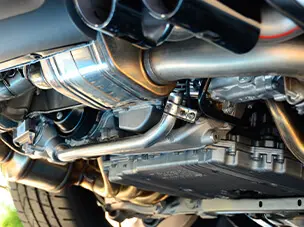

Engine Pipe

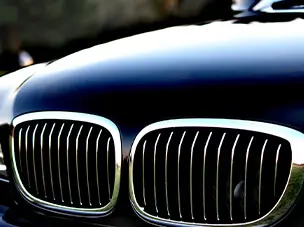

Grille
Carlight

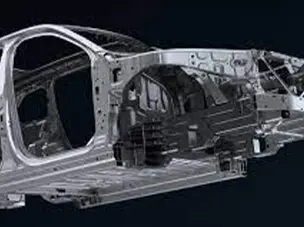

Body-in-white
Foot Pad

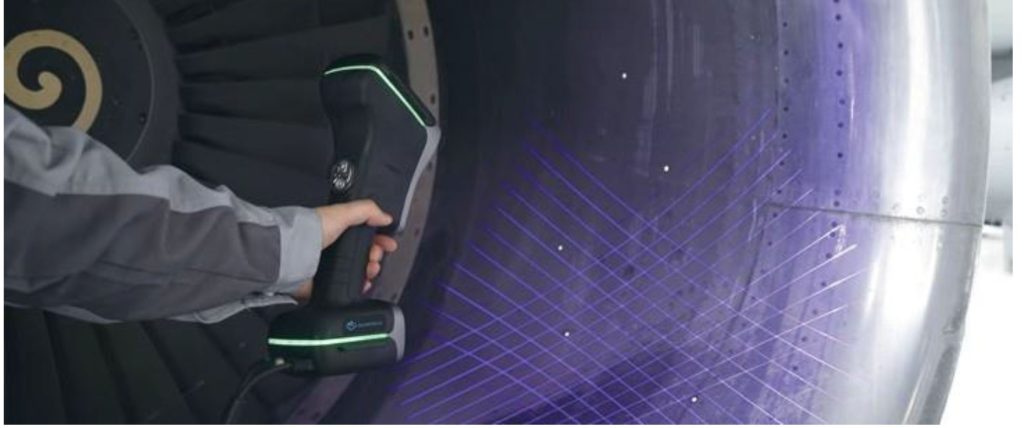

Wide-Area Scanning, Exceptional Precision

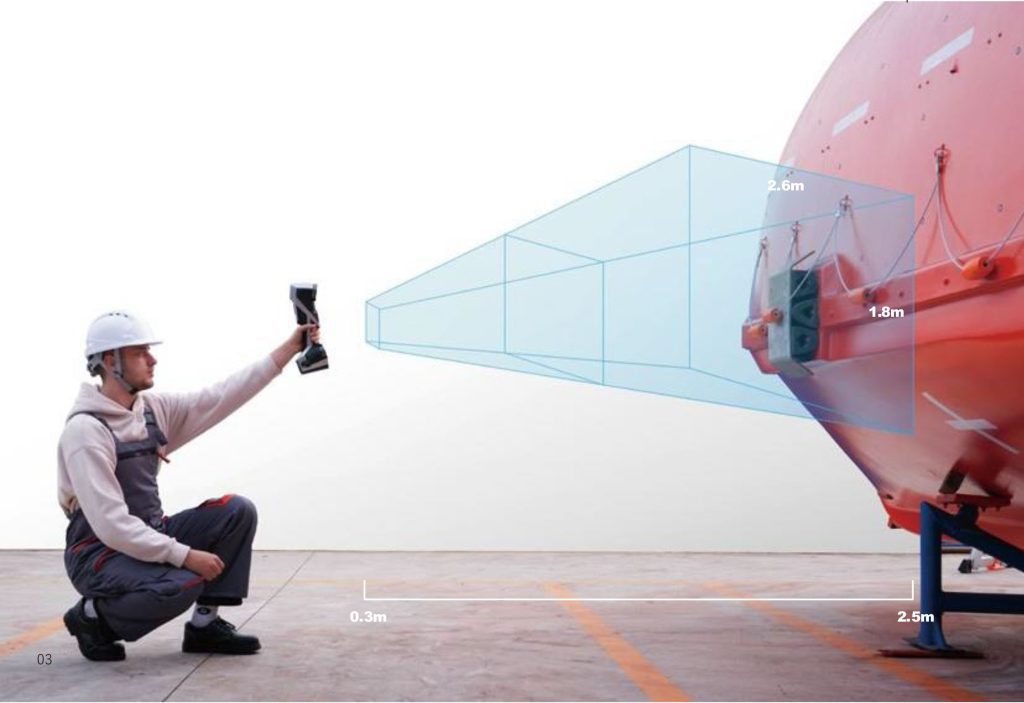

Ultra-large Scanning Area

KSCAN-X, powered by our in-house developed algorithms,
offers extensive scanning area of up to 2.6m*1.8m.

Ultra-large Depth of field

With a large depth of field ranging from 0.3-2.5m, KSCAN-X
ensures precise measurements for everything from medium to
ultra-large parts with exceptional quality

Deep Hole Measurement | No Blind Spots

1 single blue laser line, short camera-distance design of 235
mm, excellent for hard-to-reach areas

Ultra-large Parts | High Efficiency
Large FOV scanning:

It achieves exceptional accuracy of up to 0.075 mm, with
volumetric accuracy reaching 0.075 mm + 0.010 mm/m

Adaptive photogrammetry:

It eliminates cumulative errors and ensures consistent
volumetric accuracy, delivering high-precision results for both
large-scale and detailed measurements.

Medium to Large-sized Parts | Capture Fine Details

– Innovative medium-distance scanning mode for scanning
parts ranging from 0.5 m to 2 m
– 27 blue laser crosses
– 0.030 mm accuracy

Truly Wireless Scanning

It operates completely wire-free, enabling seamless scanning
even in power-limited environments, at heights, or in remote
locations.
-Robust on-board processing module
-Dual-battery system
-Dual-WNIC design technology

Fast and Smoother

4*21 Quad-cross blue laser lines | Scanning rate up to 6,450,000
measurements/s | 180 FPS High frame rate | Fewer markers

Intuitive & Adaptive
Touchscreen Interface:

Built-in full-color touchscreen for real-time hardware and
software status updates.

Smart Guidance:

User-friendly software with customizable prompts for quick
on-board and lower training costs

Technical Specifications

Type

KSCAN-X

Scan mode

Large FOV scanning

84 blue laser lines

Medium-distance scanning

54 blue laser lines

Deep hole scanning

1 extra blue laser line

Photogrammetry

Adaptive photogrammetry

Accuracy (1)

Medium-distance scanning

0.030 mm

Large FOV scanning

0.075 mm

Volumetric accuracy (1)(2)

0.075 mm + 0.010 mm/m

Scanning rate up to

6,450,000 measurements/s

Scanning area up to

2600 mm*1800 mm

Working distance

0.30 – 2.50 m

Object size

0.5 m ~ 15 m

Laser class

ClassⅡ (eye-safe)

Resolution up to

0.1 mm

Dimension

344 mm*124 mm* 99 mm

Inter-camera distance

235 mm

Connection

Interface mode

USB3.0 Type-B

Wireless standard

Wi-Fi 6，802.11a/b/g/n/ac

Wireless connection

Support Dual WNIC

Intelligent and wireless mode

Support

Uninterrupted power supply

Support

Environment Adaptability

Operating environment

Fanless, suitable for workshop environments

Operating temperature range

-10~40℃

Operating humidity

10-90% RH

Protection rating

IP50

Patent

CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1, KR102209255B1, US10914576B2, CN113470180B, CN113218417B, CN113063370B, CN218411073U, CN113310427B, CN113074659B, CN218772495U, CN113473034B, CN115830249B, CN219829786U, CN116206069B

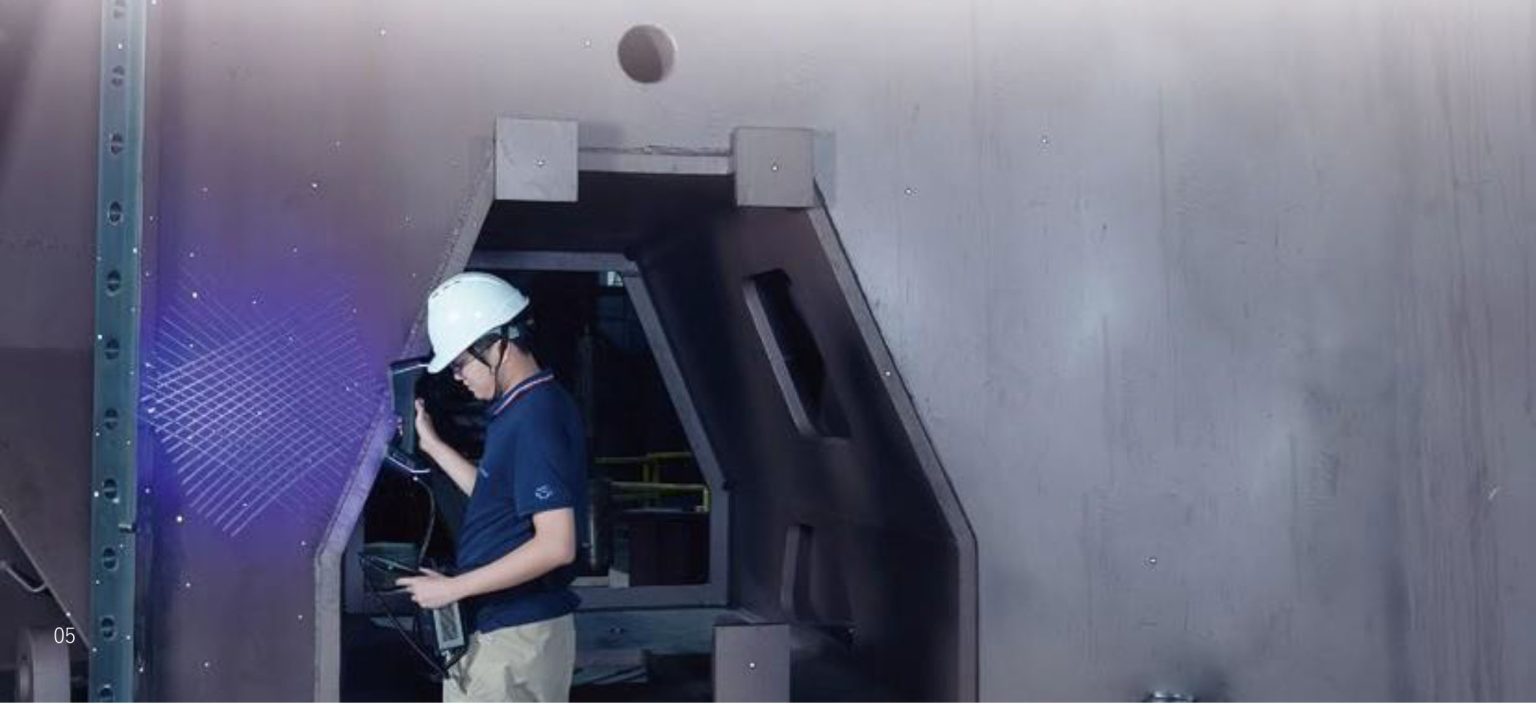

KSCAN - MAGIC

KSCAN-Magic Upgrade Series, the cutting-edging composite 3D scanner that integrates infrared and blue lasers in one versatile
instrument, boasting five operating modes. This innovative 3D scanner series incorporates a multi-spectrum 3D scanning and
calibration technique, combining exceptional efficiency and uncompromising accuracy. It features fast scanning speed, high
accuracy, great detail capturing, large scanning area, and extended depth-of-field that greatly optimize the 3D measurement
workflows and accelerate the product time-to-market.

Five Modes at Your Fingertips
Large-area Scanning

KSCAN-Magic innovatively adopts large-area scanning powered
by 11 infrared parallel laser lines. Its ultimate scanning area
reaches 1440 mm × 860 mm, achieving wide-range measurement with ease.

Ultra-fast Scanning

It can 3D scan with 17 blue laser crosses and capture up to
4,150,000 measurements per second, greatly improving work efficiency.

Hyperfine Scanning

With 7 parallel blue laser lines, KSCAN-Magic Upgrade Series 3D scanner can accurately obtain complete data of complex objects, easily capturing every detail with a maximum resolution of 0.010 mm.

Deep Hole Scanning

This mode can accurately capture 3D data of deep holes and hard-to-reach areas.

Built-in Large-area Photogrammetry

The built-in infrared photogrammetry system, with a shooting area of 3760 mm * 3150 mm, can efficiently reduce the accumulated errors caused by large-sized measurements, ensuring
volumetric accuracy.

Metrology-grade NDT Measuring

Its scanning accuracy is of up to 0.020 mm, and its volumetric
accuracy is 0.015 mm + 0.012 mm/m when paired with
MSCAN-L15 photogrammetry system, which delivers ultra-high
precision NDT for various industries.

Flexible Uses

KSCAN-Magic is lightweight and portable and can conduct 3D
measurements anywhere and anytime regardless of vibrations, temperature, and humidity. Moreover, KSCAN-Magic is capable
of 3D scanning various surfaces, including reflective and black
surface, to capture precise 3D data.

Massive Functions

Intelligent edge inspection: It boasts an optional module for
intelligent edge inspection. Users can inspect closed features
precisely and obtain repeatable results.

Contact probing: It can be paired with a portable CMM K-Probe
to probe inaccessible areas and complex parts.
Pipe measurement: It is capable of 3D scanning pipes of
different sizes and materials for reverse engineering and
inspection.

Automated 3D system: It can be paired with SCANTECH’s
automated 3D inspection system to conduct automated batch
inspections.

Technical Specifications

TypeSIMSCAN 42SIMSCAN 30SIMSCAN 22
Scan modeUltra-fast scanning17 blue laser crosses11 blue laser crosses7 blue laser crosses
Hyperfine scanning7 blue parallel laser lines
Deep hole scanning1 extra blue laser line
Accuracy(1)Up to 0.020 mm (0.0008 in)
Scanning rate up to2,800,000 measurements/s2,020,000 measurements/s1,250,000 measurements/s
Scanning area up to700 mm × 600 mm (27.6 in × 23.6 in)650 mm × 550 mm (25.6 in × 21.7 in)
Laser classCLASSⅡ
(eye-safe)
Resolution up to0.020 mm (0.0008 in)
Volume accuracy(2)Standard0.015 mm + 0.035 mm/m (0.0006 in + 0.0004 in/ft)
Paired with MSCAN-L150.015 mm + 0.012 mm/m (0.0006 in + 0.00014 in/ft)
Stand-off distance300 mm (11.8 in)
Depth of field550 mm (21.7 in)
Output formats.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating temperature range-10℃–40℃ (14℉-104℉)
Interface modeUSB 3.0
Dimensions203 mm × 80 mm × 44 mm (8.0 in × 3.1 in × 1.7 in)
Weight570 g (1.26 lb)
PatentsCN204329903U, CN104501740B, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204902785U, CN106403845B, CN110030946B, CN212300269U, CN211904059U, CN211696268U, CN306053019S, CN212606697U, CN306321502S

(1)  ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated.

(2)  ISO 17025 accredited: Based on VDI/VDE 2634 Part3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
