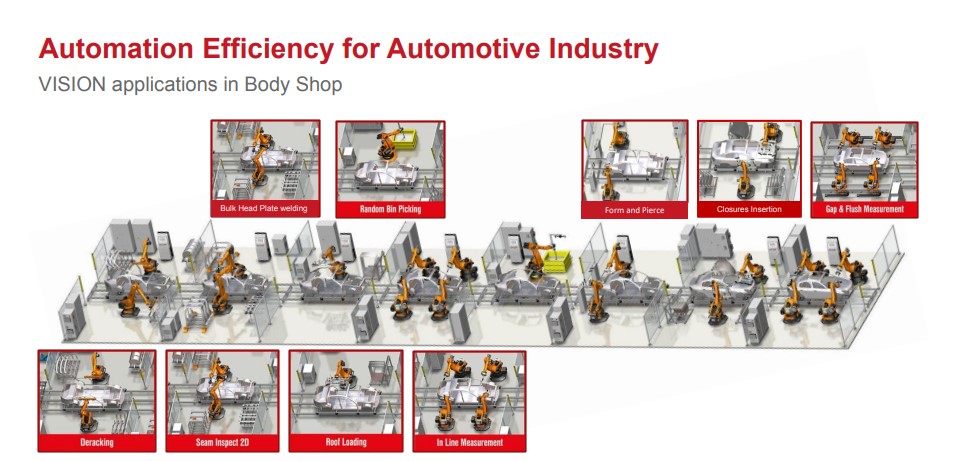

Body Shop Application

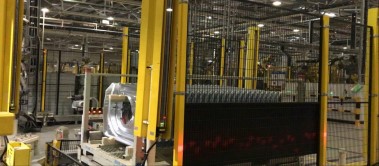

De-racking / de-palletizing

Efficient, cost-effective and precise 3D robot guided DeRacking of sorted components of all sizes from
transport containers:


Door, Roof, Trunk-lid, Fender, Bonnet / Hood,
A-Pillar and more

Best Fit Applications

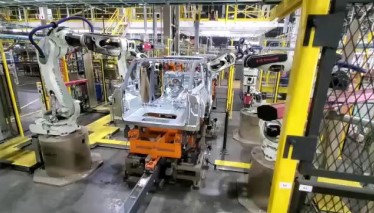

3D robot guidance system handling multiple car types
in the same line


Ensures uniformity of gaps specified by customers,
especially during the installation of roofs, trunk lids,
doors, fenders, and hoods

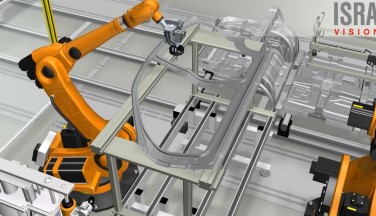

Enhanced Adhesive Sealant Inspection

Continuous 100 % bead inspection to prevent limited
structural strength and corrosion due to insufficient
filling or sealing

Reliable application at accelerated cycle times /
within complex geometries

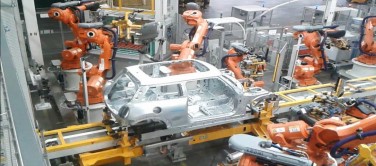

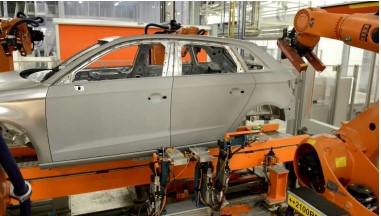

Gap & Flush measurement

100% automated measurement of critical gaps and
flushness on every body-in-white:


Doors, Hood, Fenders, Rear Lid / Tailgate / Decklid

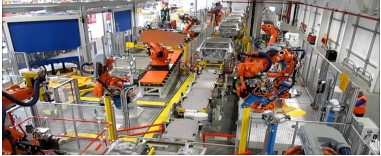

Traceable Optical In-/At-line Metrology (Absolute accurate measurement )

Precisely measure 3D coordinate of
measurement feature (holes, studs, edges, etc.) on
100% of the part traceable to ISO10360

Eliminate time-consuming CMM correlation

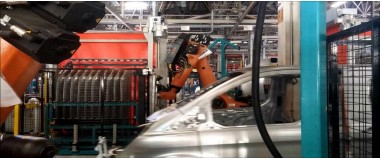

Relative Optical In-/At-line Metrology (Robot Temperature Compensation)

Real-time process measurement results for proactive
quality control in manufacturing line

Traceable through CMM correlation
